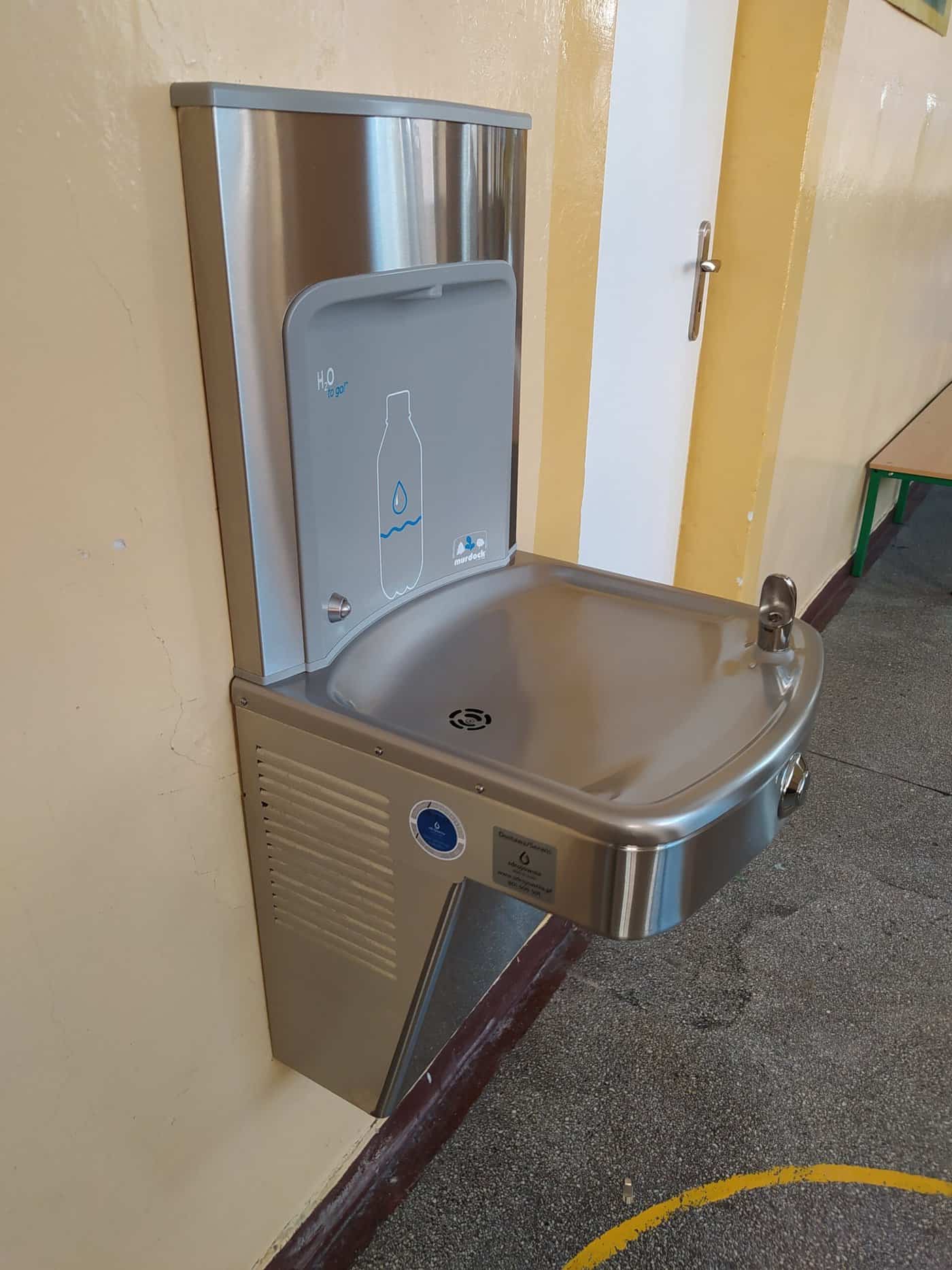

The kit consists of one spring and a wall-mounted tap water dispenser.
Drink water! Fill up your bidon! Hydrate yourself! Series H2o to go! is a refreshing and ecological alternative to plastic water bottles. With its modern styling, slim and sleek design, it stands out from other water dispensers and surprises with its functionality and performance features. Meet the A171-BF11 model! The most popular drinking water station model for schools and workplaces.
Featuring a water source with a refillable bottle dispenser, this dual-purpose device helps quench thirst and protects the environment from disposable plastic bottles. The station allows water to be consumed directly from the device and the wide bowl protects the floor from splashing. The bottle pourer allows convenient filling of bidons, cups or jugs. The slim design of the water dispenser makes the device look very modern, takes up little space and is very functional.
As standard, the unit is available in a steel finish, but on request it can be painted (bottom casing) in the colour of your choice. When installed at the correct height, the unit is suitable for people with disabilities (wheelchair users) and small children, which is why it is so often chosen as a water dispenser in schools, kindergartens and sports centres.
The kit consists of one spring and a wall-mounted tap water dispenser. Designed for indoor use only. Provides access to drinking water for all thirsty people and allows filling of bottles, bidons, carafes and jugs. Lower bowl and wall-mounted dispenser activated by two separate self-reversing buttons.
Supporting structure made of stainless steel. The deep stainless steel bowl as a one-piece piece reduces splashing and is connected to the drain. The unit is fitted with a vandal resistant steel spout and vandal resistant steel actuation buttons. A valve with integrated flow regulator, ensures a constant flow of water. An easily removable cover guarantees convenient access to the inside of the dispenser. The dispenser housing is made of 0.95 mm thick stainless steel sheet with a satin surface finish and has components made of impact-resistant ABS with an anti-bacterial finish. The distributor dispenses unfiltered water at a rate of approx. 3.8 l/min and the laminar flow prevents splashing. The drain system eliminates the possibility of residual water.
Design complies with the requirements of the ADA on accessibility for people with disabilitiesas far as standing persons and children are concerned, provided that they are properly installed.
IMPORTANT: Only the steel spout of the lower bowl is used to draw water for testing, due to the possibility of it being fired by a test burner.
The device is approved by the PZH Institute of Hygiene and has the safety mark B for construction products (ITB - Institute of Building Technology) and lead-free design certified to NSF/ANSI 61 and complies with regulations for lead-free devices.
Assembly: Optional
Disabled access: Yes
Attestation: PZH
Commissioning: Touch
Refrigerator: No
Dimensions (W*S*G): 901*470*470 mm
Water connection: 3/8„
